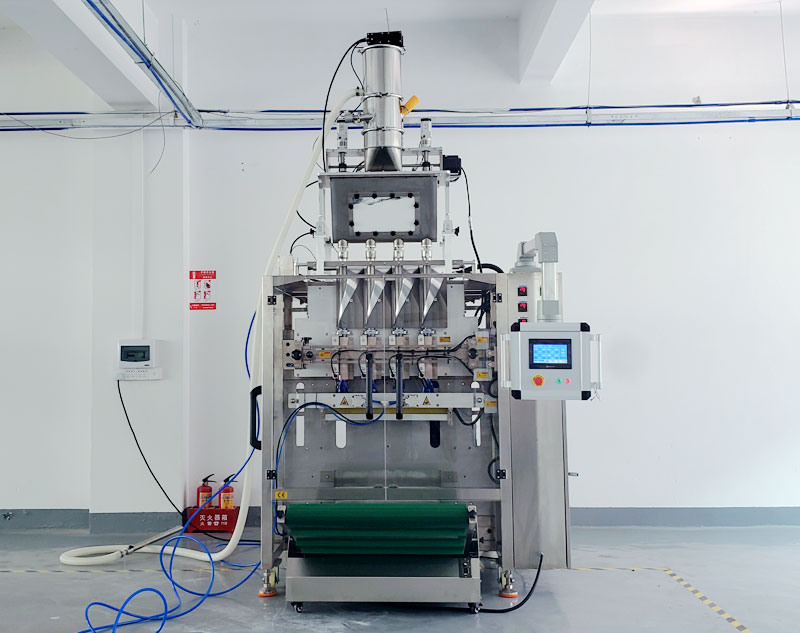

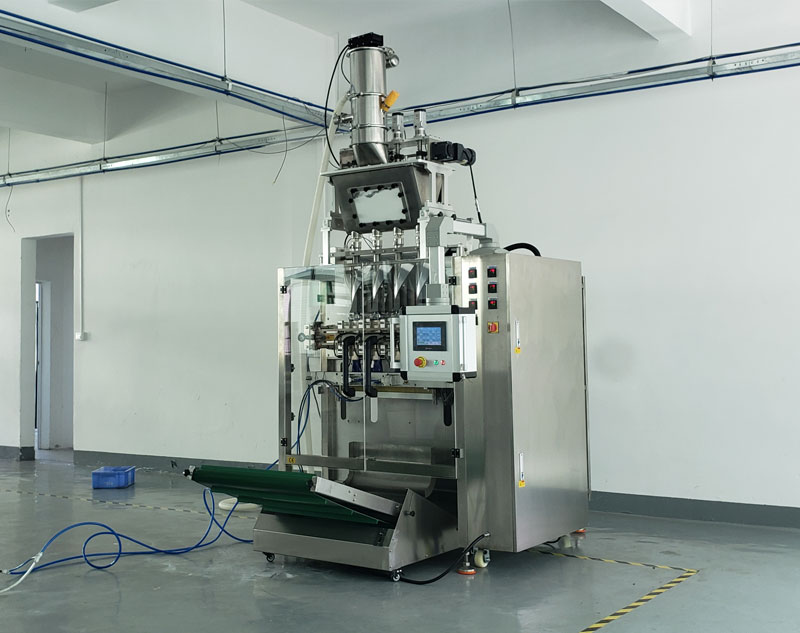

Multi row three side sealing powder packaging machine

Product model：CY300F/CY600F/CY900F

The automatic multi row three side sealing powder packaging machine is applicable to the automatic packaging of powder or fine particles in pharmaceutical, food, daily chemical, pesticide, hardware products and other industrial products
Such as: food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, pesticide powder, cockroach medicine, health tea powder, glucose powder, soda powder, etc

We can help you find the goods you want by phone

Consult immediately 18676947539
Machine parameters
     Model CY300F CY600F CY900F
    Lanes number 2-4 lanes 3-10 lanes 4-16 lane
 Capacity  2--40 / Max.20-40cycle/min/lane
 Bag size L 50-180mm  W:25-75mm L::50-180mm  W:25-100mm L::50-180mm  W:25-110mm
Film width&thickness Max.300mm,0.07--0.1mm Max.600mm,0.07--0.1mm Max.900mm,0.07--0.1mm
Measuring Method 1.long auger;2.short auger;3.short auger with cup
Sealing type  3 side sealing  3 side sealing  3 side sealing
Cutting type 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1385*918*2005mm 1685*1300*2005mm 1700*1600*2500mm
 Weight 400kg 600kg 950kg
Machine details

Electric box

Screw metering system

Screw metering system 1

Left 45

Effect of packaging sample bag
